£17,500 + VAT

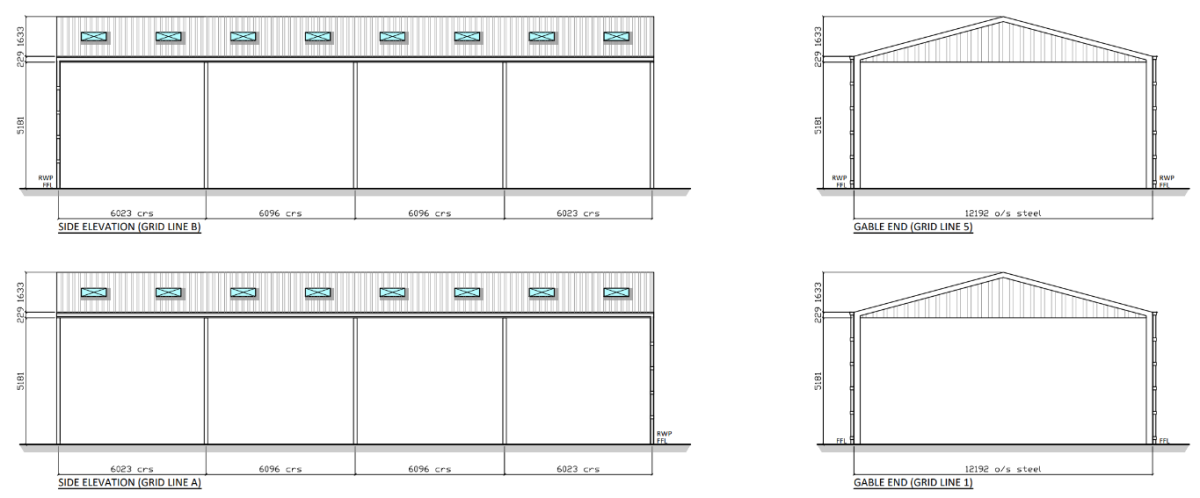

LENGTH: 24.384m (80`)
WIDTH: 12.192m (40`)
EAVES HEIGHT: 5.181m (17`)
ROOF PITCH: 15º
The 80′ x 40′ Dutch Barn is exactly what it says on the tin: a classic roof-on-legs structure.
Traditionally used for straw storage, it also makes an ideal cover for an existing midden or slurry store.
Simple, practical, and timeless.
Just for December.
Catch it while you can.
SPECIFICATION
STEELWORK:
To supply for erection on prepared site and concrete foundations, steel portal frame 6.096m (20`) centres with 254 x 146 x 31kg UB stanchions with web stiffeners and 203 x 133 x 25kg UB rafters with rafter stays.
Both gable frames to have 1No. 178 x 102 x 19kg UB intermediate Gable Hanger, including CHS rafter and side bracing to one end bay, complete with CHS eaves ties.
All steelwork to be shotblasted and painted with a red semi oxide finish.
PURLINS:
To supply 225 x 75 graded tanalised timber purlins bolted to frame at 1.375m centres. Eaves beam to be 225 x 75 C16 graded tanalised timber.
ROOF CLADDING:
To supply Profile 6 reinforced corrugated natural grey fibre cement sheets. Ridge to be alternating close fitting and ventilating crown cranked. Verges to be finished with fibre cement barge boards.

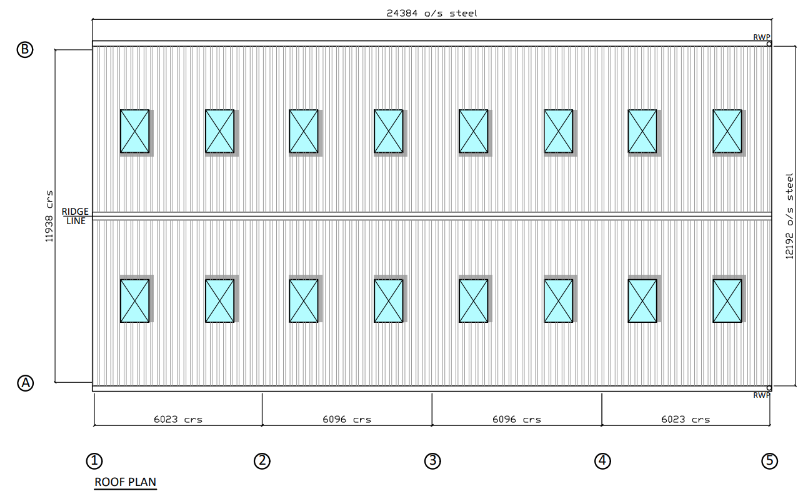

ROOF LIGHTS:
Incorporate 16No. 1.525m corrugated 2.40kg/m² GRP profile 6 roof lights in roof cladding positioned to suit customer’s requirements.
RAINWATER GOODS:
Eaves gutter to be 160 on the side with 1No. 110mm Ø UPVC downpipes to each side. All gutters to be UPVC with rubber sealed joints fixed to eaves beams with UPVC brackets at 1m intervals and UPVC down-pipe clips to stanchions.
END CLADDING:
Both gable ends to be clad down to eaves level with 150 x 22 graded tanalised Yorkshire boarding on 125 x 75 graded tanalised timber sheeting rails.
SIDE CLADDING: None
