100′ x 50′ Cubicle Building

£29,900 + VAT

LENGTH: 30.480m (100′)

WIDTH: 15.240m (50′)

EAVES HEIGHT: 4.267m (14′)

ROOF PITCH: 15º plus 1.372m (4’6″) Cantilever to one side

Our cubicle building is designed to give your herd a comfortable, well-ventilated and reliable space built to handle everyday dairy demands.

The heavy-duty steel frame, finished in a protective red semi-gloss, is paired with reinforced fibre cement roofing and 40 GRP roof lights to keep the interior bright and airy.

Timber Yorkshire boarding provides natural ventilation, while PVC guttering manages rainwater cleanly and efficiently. Concrete panels are added where extra strength is needed, creating durable, easy-clean surfaces in high-traffic areas.

With two wide, open-access doorways for easy machinery and livestock movement, this building is practical, hard-working and customisable to suit your farm.

If you need alternative layouts or specifications, we can tailor the design to fit exactly what you need.

SPECIFICATION

STEELWORK

To supply for erection on prepared site and concrete foundations, steel portal frame 6.096m (20`) centres with 254 x 146 x 31kg UB stanchions with web stiffeners and 254 x 146 x 31kg UB rafters with rafter stays including CHS rafter bracing to one bay, complete with CHS eaves ties.

Both gable frames have 3 No. 203 x 133 x 25kg UB intermediate sub stanchions, including CHS rafter and side bracing to one end bay, complete with CHS eaves ties.

All steelwork will be shot-blasted and painted with a red semi-gloss finish.

PURLINS

To supply 225 x 75 C16 graded tanalised timber purlins bolted to frame at 1.375m centres. Eaves beam to be 225 x 75 C16 graded tanalised timber.

ROOF CLADDING

To supply Profile 6 reinforced corrugated natural grey fibre cement sheets. Ridge to be alternating close fitting and ventilating crown cranked. Verges to be finished with fibre cement barge boards.

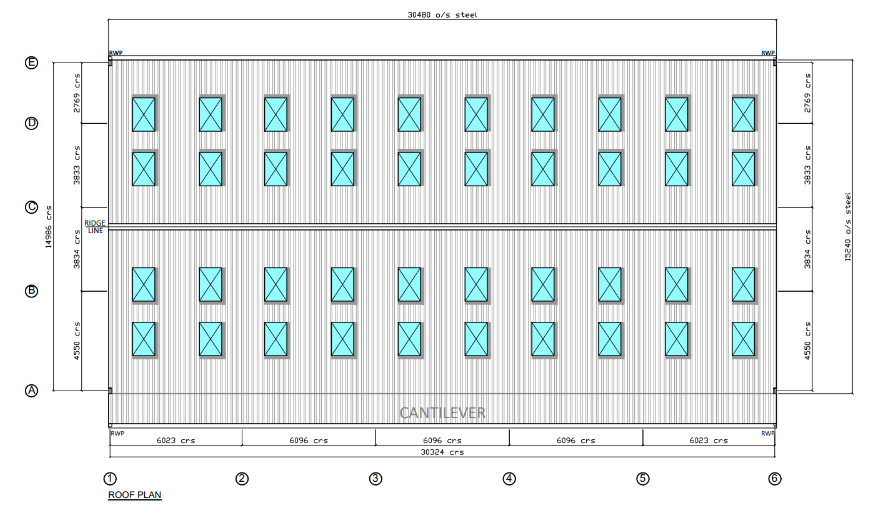

ROOF LIGHTS

Incorporate 40 No. 1.525m corrugated 2.40kg/m² GRP profile 6 roof lights in roof cladding positioned to suit the customer’s requirements.

RAINWATER GOODS

Eaves gutter to be 160 on the side with 2 No. 110mm Ø PVC downpipes to each side. All gutters are to be PVC with rubber-sealed joints fixed to eaves beams with PVC brackets at 1m intervals and PVC down-pipe clips to stanchions.

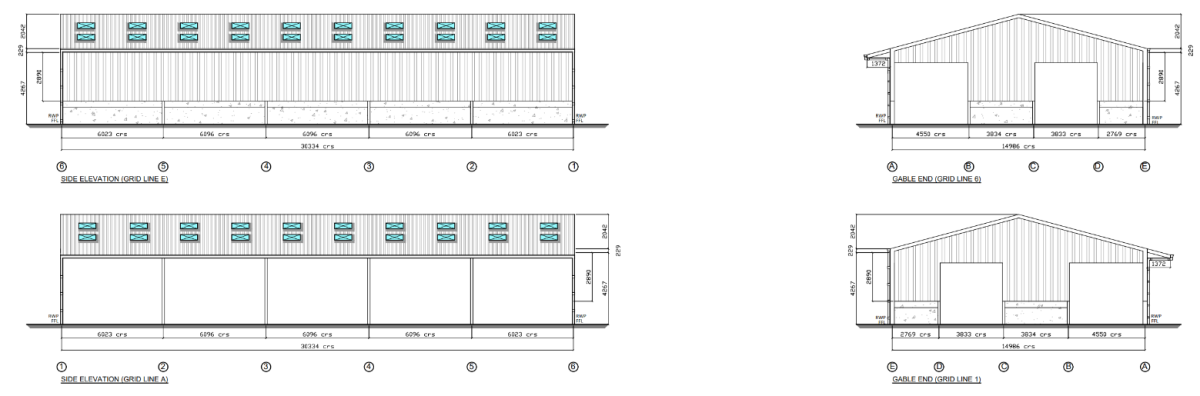

GABLE ENDS

Both gable ends are to have 150 x 22 tanalised timber Yorkshire boarding down to 2.896m (9`6″) below eaves level on 125 x 75 C16 graded tanalised timber sheeting rails.

SIDES

One side to have 150 x 22 tanalised timber Yorkshire boarding down to 2.896m (9`6″) below eaves level on 125 x 75 C16 graded tanalised timber sheeting rails.

CONCRETE PANELS

90mm thick x 1.500m high to 24` on both ends (excludes doorways) and one full side.

OPENINGS

2 No. Doorways are to be 4.267m (14`) wide x 3.658m (12`) high, one positioned on each gable. (No doors)

2 No. Doorways are to be 3.658m (12′) wide x 3.658m (12′) high, one positioned on each gable. (No doors)
