Please note that steel sizes/building specifications may vary depending on the location of your building & its local weather conditions.
The 80′ x 40′ Dutch Barn is exactly what it says on the tin: a classic roof-on-legs structure.
Traditionally used for straw storage, it also makes an ideal cover for an existing midden or slurry store.
Simple, practical, and timeless.
STEELWORK:

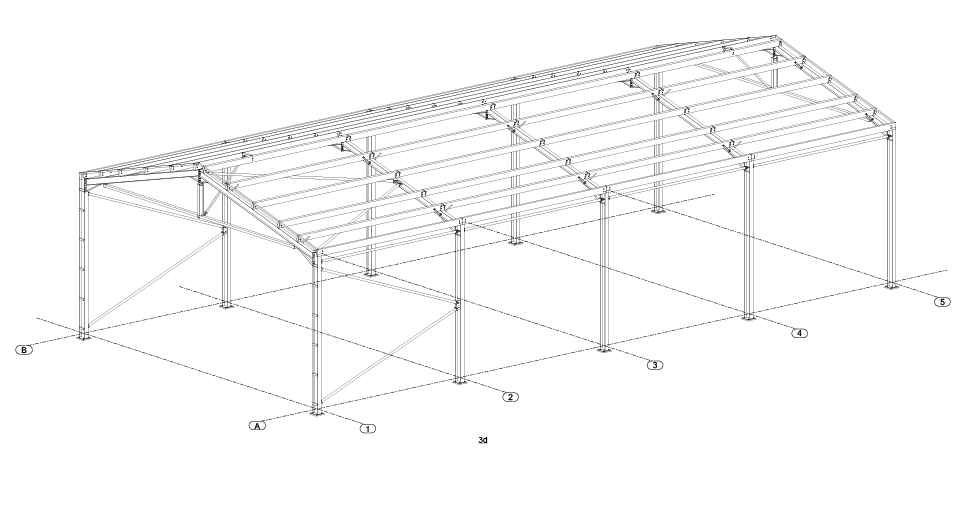

To supply for erection on prepared site and concrete foundations, steel portal frame 6.096m (20`) centres with 254 x 146 x 31kg UB stanchions with web stiffeners and 203 x 133 x 25kg UB rafters with rafter stays.
Both gable frames to have 1No. 178 x 102 x 19kg UB intermediate Gable Hanger, including CHS rafter and side bracing to one end bay, complete with CHS eaves ties.
All steelwork to be shotblasted and painted with a red semi oxide finish.
PURLINS:
To supply 225 x 75 graded tanalised timber purlins bolted to frame at 1.375m centres. Eaves beam to be 225 x 75 C16 graded tanalised timber.
ROOF CLADDING:
To supply Profile 6 reinforced corrugated natural grey fibre cement sheets. Ridge to be alternating close fitting and ventilating crown cranked. Verges to be finished with fibre cement barge boards.
ROOF LIGHTS:
Incorporate 16No. 1.525m corrugated 2.40kg/m² GRP profile 6 roof lights in roof cladding positioned to suit customer’s requirements.
RAINWATER GOODS:
Eaves gutter to be 160 on the side with 1No. 110mm Ø UPVC downpipes to each side. All gutters to be UPVC with rubber sealed joints fixed to eaves beams with UPVC brackets at 1m intervals and UPVC down-pipe clips to stanchions.
END CLADDING:
Both gable ends to be clad down to eaves level with 150 x 22 graded tanalised Yorkshire boarding on 125 x 75 graded tanalised timber sheeting rails.
SIDE CLADDING: None
